Culinary Hero

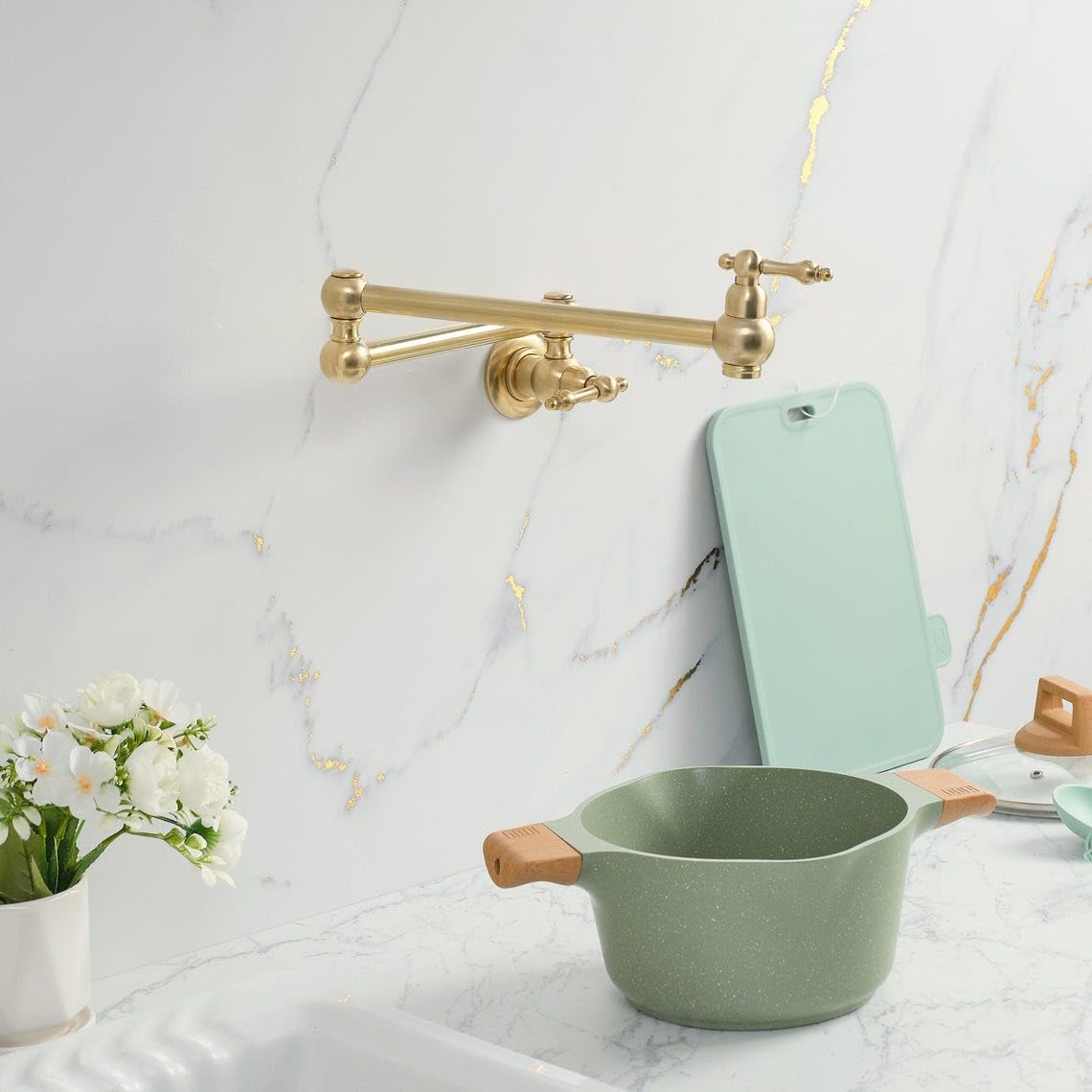

Handcrafted Unlacquered Brass Wall-Mount Pot Filler - Front View
100% Solid Living Brass Guarantee

Cast from 100% architectural solid brass in Marrakech ateliers. Free of synthetic lacquers and electroplated layers. Designed to naturally oxidize and self-heal with touch and time.

Kitchen FixturesCatalog N° AMZ-POTFILLER-01

Handcrafted Unlacquered Brass Wall-Mount Pot Filler Faucet

Dual-jointed 24-inch articulating swing arm stove faucet with dual ceramic shut-off valves & US 1/2" NPT threads

Finish:Unlacquered Living Raw Brass
$389.00$460.00
Prime Available (USA)
Order on Amazon PrimeFast
Official Brasscrafted StorefrontFast Delivery • Easy Returns
Free US Shipping
30-Day Returns
100% Solid Brass
Living Patina Finish

A centerpiece of architectural authority for luxury culinary ranges and custom hearths, this solid unlacquered brass wall-mounted pot filler faucet eliminates the strain of carrying heavy water-filled pots across the kitchen. Hand-forged in Marrakech from heavy-gauge virgin 65/35 architectural brass without synthetic lacquers, electroplating, or chemical clear coats, this living brass stove faucet effortlessly withstands intense 60,000+ BTU gas burner heat, oil splatters, and boiling steam without bubbling, peeling, or thermal delamination. The dual-pivot articulating swing arms extend a full 24 inches to service front and rear burners across 30-inch, 36-inch, and 48-inch commercial ranges, then fold flat against tile backsplashes with under 2.5 inches of clearance when not in use. Engineered with dual independent shut-off valves—a primary structural valve at the wall mounting escutcheon and a secondary 1/4-turn valve at the spout nozzle—this pot filler provides fail-safe double leak protection directly over expensive cooktop surfaces. Delivering an unrestricted 4.0 GPM flow rate, it fills large 12-quart canning stockpots and Dutch ovens in under 70 seconds. Precision machined with standard American 1/2-inch NPT (National Pipe Taper) brass threads, it connects directly into standard in-wall drop-ear plumbing elbows at the recommended 12-to-14-inch rough-in height above range grates.

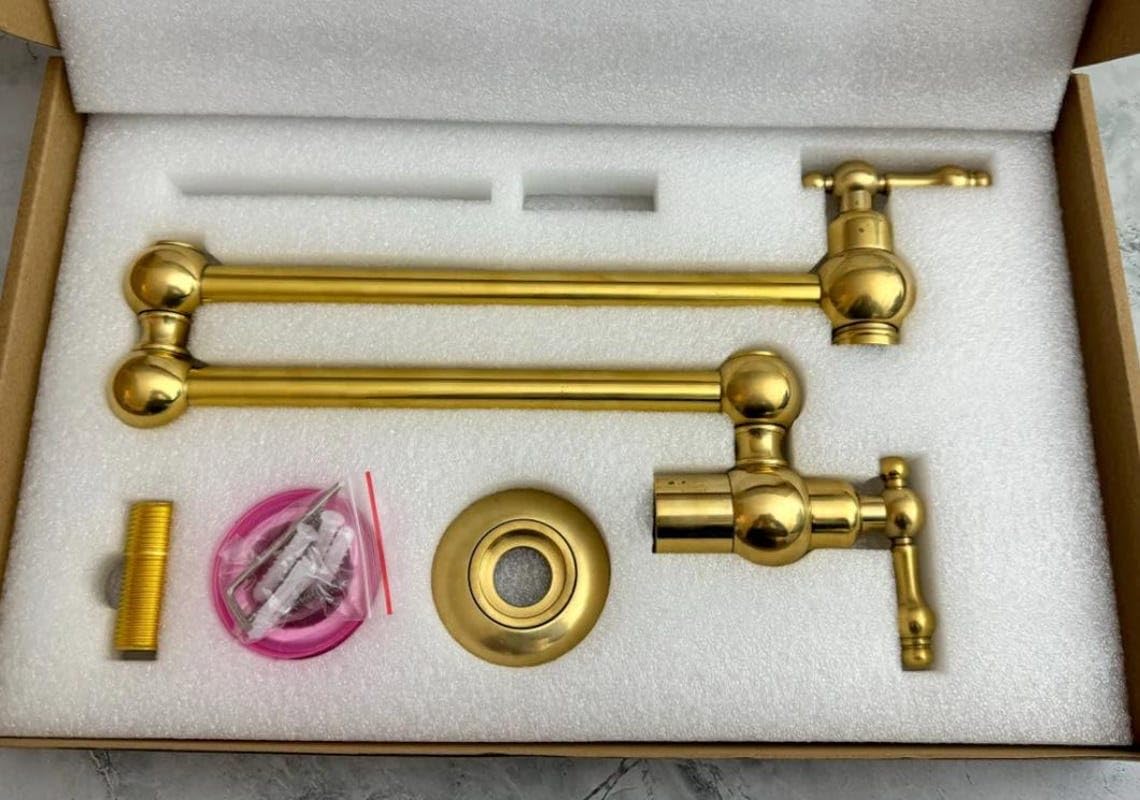

Package Includes:
  • Articulating Dual-Joint Pot Filler Assembly
  • 1/2" NPT Solid Brass Wall Escutcheon Flange
  • High-Flow Ceramic Disc Valve Cartridges
  • Solid Brass Wall Mounting Screws & Hex Key
  • Plumber's Teflon Sealant Tape & Spare O-Rings
Foundry Benchmark Standards

Architectural Integrity & Craftsmanship Details

Direct Foundry Sourcing
Foundry Standard 01

Solid Sand-Cast Metallurgy

Poured from pure copper-zinc ingot without hollow voids or pot-metal filler. Substantial physical weight and micro-textured surface reflect authentic sand mold casting.

Zero Pot Metal • 8.53 g/cm³Heirloom architectural density
Foundry Standard 02

Unlacquered Living Surface

Raw, unsealed brass with no artificial polyurethane coating. Reacts organically to touch, water, and humidity to develop a rich, timeless antique patina.

Living Finish LongevityCan age naturally or polish back to mirror shine
Foundry Standard 03

Precision Slotted Fasteners

Shipped with solid machined brass screws and mounting hardware matching the exact alloy and finish of the fixture, eliminating stripped zinc screw heads.

Complete Installation KitSolid brass hardware & heavy anchors included
Culinary Engineering & Rough-In Specifications

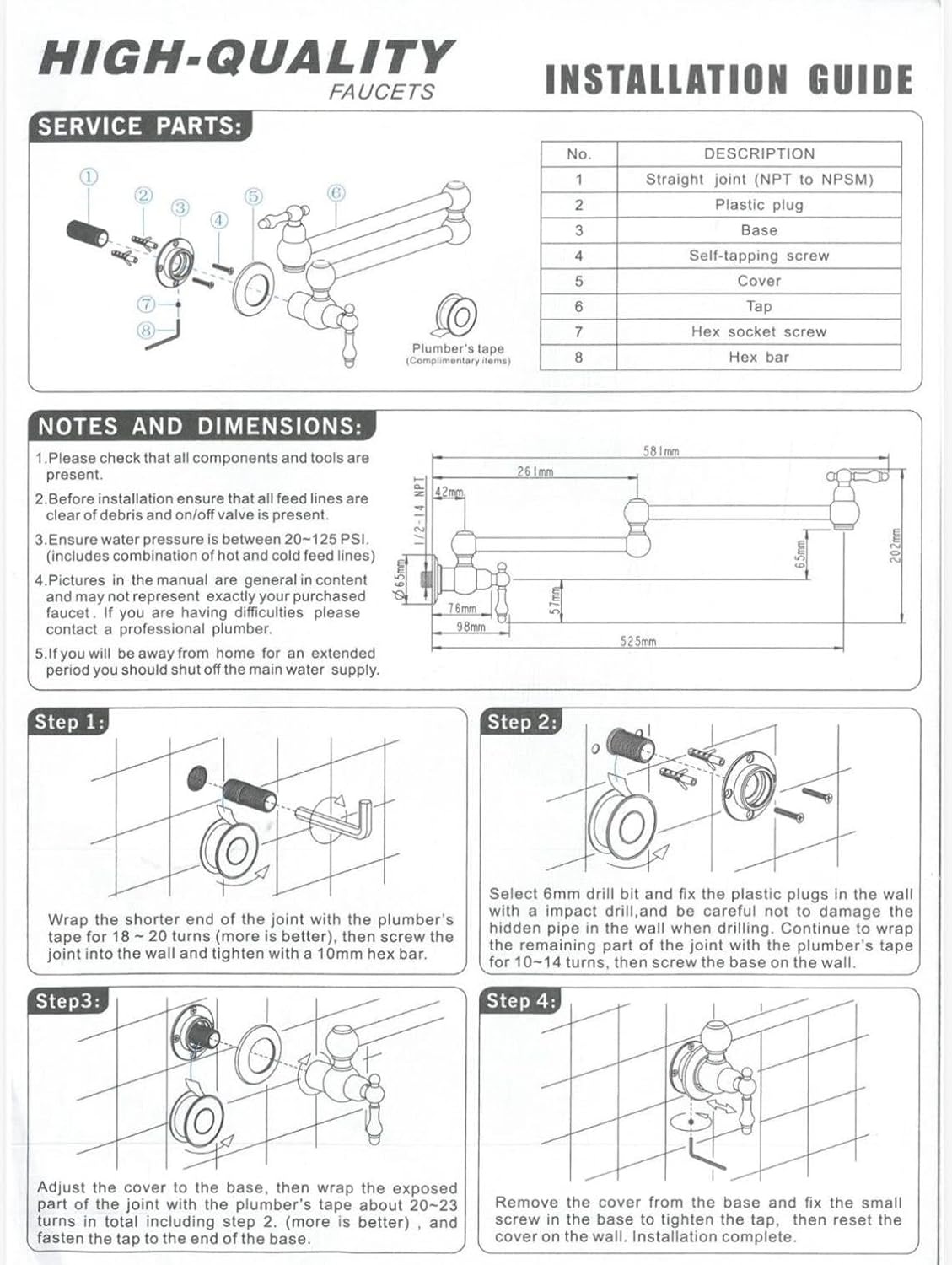

Stove Pot Filler Architectural Manual

Standard US 1/2" NPT • 4.0 GPM High-Flow
Rough-In Height Above Range

12"–14" Centerline Standard

Plumb the 1/2" female NPT drop-ear elbow 12 to 14 inches above your cooktop burner grates. This provides effortless vertical clearance over tall 16-quart stockpots, French ovens, and pasta cookers without heat splatter.

Dual Ceramic Shutoff Valves

Fail-Safe Stove Protection

Suspended over cooktop burners without a floor drain, dual quarter-turn ceramic disc valves (one at the wall flange and one at the dispensing spout) guarantee dual-stage mechanical shut-off against accidental bumping.

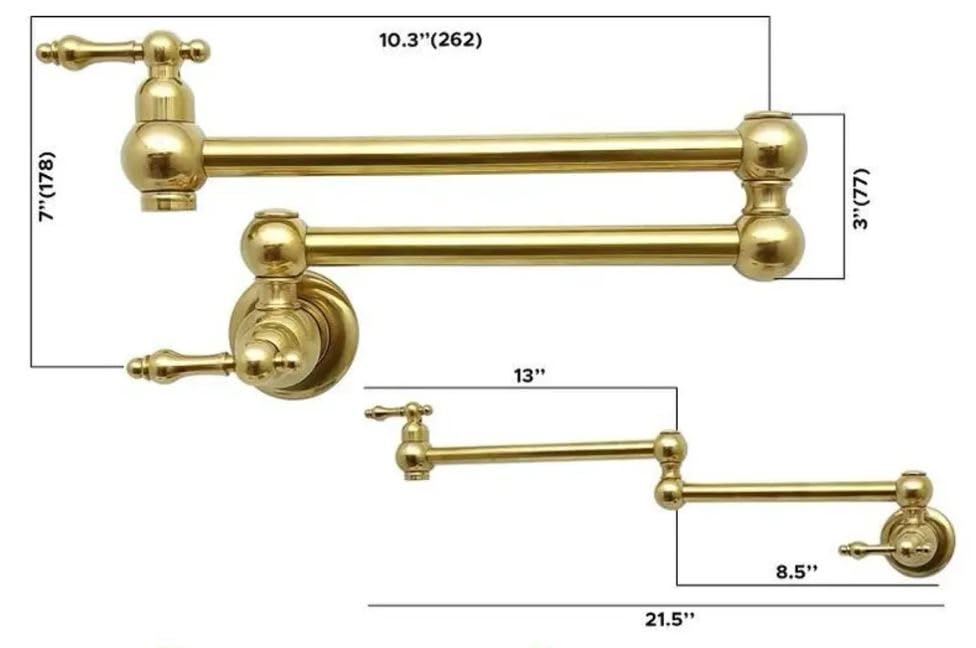

24-Inch Articulating Reach

360° Range Coverage

Dual swivel arms extend 24 inches to service all 4 to 6 burners across 30", 36", and 48" ranges, then fold flat against tile backsplashes with under 2.5 inches of clearance when cooking concludes.

Architectural Monograph • Brand Audit

Medina Brass vs. Kingston Brass, deVOL & Waterstone

Read our definitive engineering study detailing 65/35 monolithic living brass metallurgy vs. electroplated zinc, cold-water rough-in science, and plumbing code requirements.

Explore Guide & Matrix

Pot Filler Plumbing & Installation FAQs
